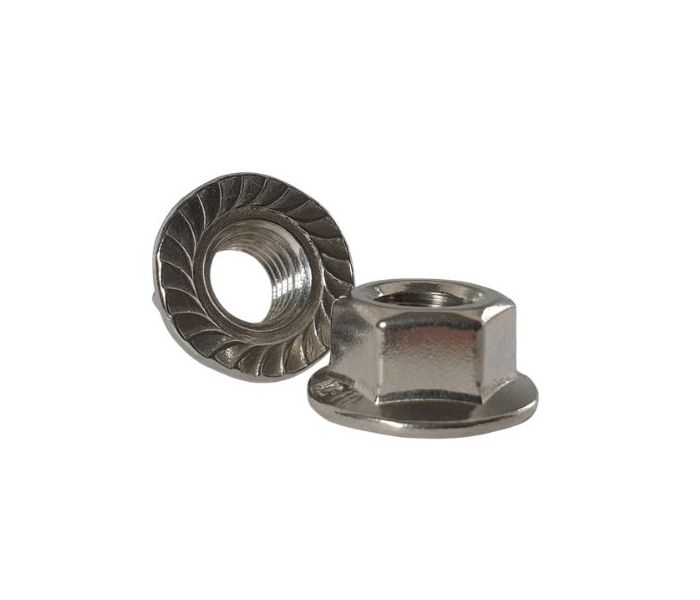

A2 Stainless Steel Serrated Flange Nuts DIN 6923 – Packs of 100
A2 Stainless Steel Serrated Flange Nuts DIN 6923 – Packs of 100
- A2 stainless steel serrated flange nuts manufactured to DIN 6923, supplied in packs of 100.
- Serrations on the underside which help prevent loosening caused by vibration.
- The built-in flange distributes load across the fixing surface
Stainless Steel Serrated Flange Nuts (DIN 6923)
- DIN 6923 serrated flange nuts are hexagon nuts with an integrated washer-style flange.
- The underside of the flange contains serrations which grip the surface during tightening, helping to resist loosening caused by vibration or movement.
- Because the flange spreads the clamping force across a larger surface area, these nuts often eliminate the need for a separate washer
A2 Stainless Steel Construction
These flange nuts are manufactured from A2 stainless steel (grade 304), providing excellent corrosion resistance and durability.
A2 stainless steel is widely used across construction, engineering and external fixing applications due to its strong resistance to corrosion in most environments.
Benefits include:
• Excellent corrosion resistance
• Suitable for internal and external use
• Long service life
• Reduced maintenance requirements
Typical Applications
DIN 6923 serrated flange nuts are commonly used in a wide range of installation and fixing systems.
Typical applications include:
• Channel and rail mounting systems
• Sign fixing assemblies
• Structural bracket installations
• Mechanical equipment mounting
• Stainless steel banding systems
• Engineering and fabrication work
The serrated flange design helps maintain secure fastening in installations where vibration may occur.
Products Often Used With This Item
These stainless steel flange nuts are commonly used alongside:

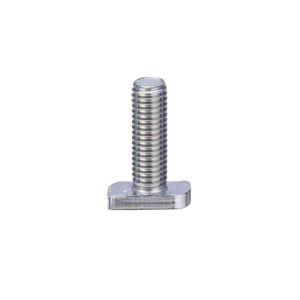

• T bolts and hammer head bolts
• Hex bolts and coach bolts
• Threaded bar and studding
• Channel rail systems
• Mounting brackets
Browse our full range of stainless steel bolts, nuts and fixing systems for compatible fasteners.
Specifications
| Thread Size | Pitch (mm) | Nut Height (mm) | Flange Diameter (mm) | Key Width (mm) | Standard | Material | Pack Size |
|---|---|---|---|---|---|---|---|
| M10 | 1.5 | 10 | 21.8 | 17 | DIN 6923 | A2 Stainless Steel | 100 |
FAQ
What does DIN 6923 mean?
DIN 6923 is the international standard that defines the design and dimensions of hexagon flange nuts.
Do serrated flange nuts require a washer?
In most installations, no. The integrated flange spreads the clamping load across the surface, which often removes the need for a washer.
Are these nuts suitable for outdoor use?
Yes. These flange nuts are manufactured from A2 stainless steel (304) which provides good corrosion resistance for external environments.
