A2 Stainless Steel TX Pan Washer Head Screws (Cut Point) box of 100
A2 Stainless Steel TX Pan Washer Head Screws (Cut Point) box of 100
- High performance A2 stainless steel timber screws with a TX drive, pan washer head and cut point
- Designed for fast installation and strong, reliable fixing into timber and sheet materials.
- Boxes of 100

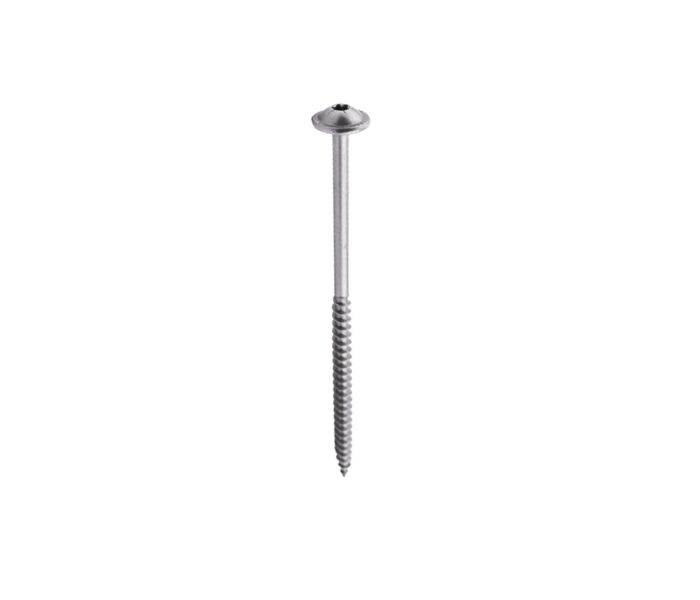

A2 Stainless Steel TX Pan Washer Head Timber Screws (Cut Point)
- These A2 stainless steel timber screws are designed for strength, ease of installation, and long-lasting performance in both internal and external applications.
- Commonly referred to as chipboard screws, they are suitable for a wide range of materials including timber, MDF, plywood and particle board.
- The cut point tip allows for quick penetration and helps reduce splitting, removing the need for pre-drilling in most timber applications.
- A TX (Torx) six lobe drive provides excellent torque transfer, reducing cam-out and allowing for faster, more controlled installation.
- The pan washer head design increases the contact surface, delivering improved clamping force and reducing the risk of pull-through when fixing sheet materials, brackets or fittings.
Key Features
-
A2 stainless steel for corrosion resistance
-
Cut point for fast insertion and reduced splitting
-
TX (Torx) drive for improved grip and torque transfer
-
Pan washer head for increased load distribution
-
Suitable for timber, chipboard, MDF and plywood
-
Ideal for internal and external applications
Applications
-
Timber construction
-
Joinery and carpentry
-
Fixing chipboard, MDF and plywood
-
Securing brackets and fittings
-
General building and site work
Technical Specifications
Full technical specifications for each size are shown below to help you select the correct screw for your application.
| Size | Thread Length | Drive | Head Type | Material | Pack Size |
| 6 x 100mm | 70mm | TX25 | Pan Washer | A2 Stainless | 100 |
| 6 x 120mm | 70mm | TX25 | Pan Washer | A2 Stainless | 100 |
| 8 x 60mm | 50mm | TX40 | Pan Washer | A2 Stainless | 100 |
| 8 x 80mm | 72mm | TX40 | Pan Washer | A2 Stainless | 100 |
FAQ
What is a TX (Torx) screw?
TX screws use a six-lobe drive system that improves grip and torque transfer, reducing slipping during installation.
Do these screws require pre-drilling?
In most timber applications, the cut point allows installation without pre-drilling. For hardwoods, a pilot hole may be required.
Are these suitable for outdoor use?
Yes, A2 stainless steel provides good corrosion resistance, making these screws suitable for external applications.
