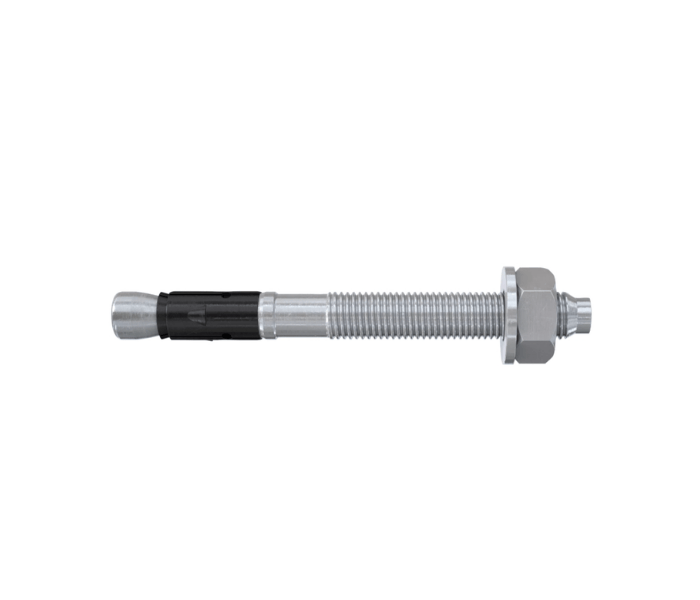

Fischer FAZ II Plus Bolt Anchors – Electro Zinc Plated Concrete Fixings
Fischer FAZ II Plus Bolt Anchors – Electro Zinc Plated Concrete Fixings
- High-performance heavy duty steel anchor for cracked and non-cracked concrete.
- Designed for fast installation and high load capacities,
- Features ETA approval, seismic certification and immediate load bearing performance.
- No drill hole cleaning required (M8–M24)
- Fixing solution for structural steelwork, guard rails, cable trays, machinery, façades and construction frameworks.
- Lead time 2-4 days
Fischer FAZ II Plus Heavy Duty Bolt Anchors for Concrete
- The Fischer FAZ II Plus is a premium bolt anchor designed for demanding structural fixing applications in concrete. Manufactured from high strength steel with an electro zinc plated finish, these anchors deliver outstanding performance where secure and reliable fixings are essential.
- The anchor uses a mechanical expansion clip system which transfers loads safely into the surrounding concrete. When the nut is tightened to the specified torque, the cone bolt expands the sleeve against the drill hole wall, creating a strong mechanical bond.
- A major advantage of the FAZ II Plus system is its fast and efficient installation. Drill hole cleaning is not required for sizes M8–M24, reducing installation time on site and improving productivity.
- With ETA approval for cracked concrete and seismic certifications, the FAZ II Plus is widely used by contractors, engineers and installers across construction and infrastructure projects.
Key Features
• High load capacity bolt anchor for structural fixings
• ETA approved for cracked and non-cracked concrete
• No drill hole cleaning required (M8–M24)
• Fast installation with immediate load bearing capacity
• Electro zinc plated steel for indoor corrosion protection
• Variable anchoring depths allow precise load adjustment
• Seismic approved anchor system
• Suitable for pre-positioned and push-through installation
Applications
Fischer FAZ II Plus anchors are commonly used for securing:
• Structural steel constructions
• Guard rails and safety barriers
• Cable trays and electrical installations
• Steel consoles and brackets
• Staircases and ladders
• Machinery and industrial equipment
• Façade systems
• Timber and structural frameworks
Suitable Base Materials
Approved for use in:
• Concrete C20/25 to C50/60 (cracked and non-cracked)
Also suitable for:
• Concrete C12/15
• Concrete C80/95
• Steel fibre reinforced concrete
• Solid sand-lime brick
Available Sizes
| Anchor Sizes | Thread | Drill Diameter | Anchor Length | Max Fixture Thickness | Min Drill Depth | Installation Torque | Box Qty |
| 8/30 | M8 | 8mm | 95mm | 30mm | 85mm | 20Nm | 50 |
Approvals & Certifications
The FAZ II Plus anchor system is supported by multiple international approvals:
• ETA-19/0520 European Technical Assessment
• DoP No. 0334 Declaration of Performance
• ICC-ESR-2948 approval
• Seismic approval C1 and C2
• Fire resistance certification R120
These certifications ensure the anchor performs safely in demanding structural environments.
Installation Guide
The FAZ II Plus anchor is designed for quick installation in concrete.
-
Drill the required hole diameter into the concrete.
-
Insert the anchor through the fixture into the hole.
-
Tighten the nut to the specified installation torque.
-
The expansion sleeve expands against the concrete wall.
-
The fixing point becomes immediately loadable once torque is achieved.
For repeated installations, Fischer anchor setting tools such as FABS or FA-ST II are recommended.
