RSJ Sign Clamps with Bolt, Nut & Washer - Sold Each
RSJ Sign Clamps with Bolt, Nut & Washer - Sold Each
- RSJ sign clamps for fixing channelled signs directly to rolled steel joists and steel beams without drilling
- Supplied complete with bolt, washer and Nyloc nut
- Available in small and large sizes to suit standard and deeper beam sections
- 2-3 day lead time on this item
- Sold each
RSJ Sign Clamps for Fixing Signs to Steel Beams and Rolled Steel Joists
- RSJ sign clamps provide a simple and secure way to mount channelled signs directly onto rolled steel joists, steel beams and gantries without the need to drill into the steelwork
- Each clamp is supplied complete with the required fixing set, making installation straightforward on site
- These clamps are designed to be used with sign channel fixed to the rear of the sign panel
- The square head bolt slides into the sign channel, the RSJ clamp is then fitted with the washer and Nyloc nut, and once the sign is positioned against the beam the clamp is rotated behind the flange and tightened into place. This gives a firm mechanical fixing suitable for sign mounting applications on exposed steel sections
- The small clamp is intended for standard RSJ sign fixing applications, while the large or gantry clamp is designed for deeper beam sections where additional reach is needed behind the web
Key features
-
Sold individually
-
Designed for fixing channelled signs to RSJs and steel beams
-
No drilling into the beam required
-
Supplied with fixing kit included
-
Small and large options available
-
Large clamp suitable for deeper beam sections and gantries
-
Works alongside rear sign channel
-
Easy to position, tighten and secure on site
How to use
-
Fix sign channel to the rear of the sign panel
-
Slide the supplied M8 square head bolt into the sign channel
-
Fit the RSJ clamp onto the bolt
-
Add the washer and Nyloc nut, leaving the fixing slightly loose
-
Offer the sign up to the RSJ or steel beam
-
Rotate the clamp so it hooks securely behind the flange of the beam
-
Tighten the nut evenly until the sign is firmly secured
Variants

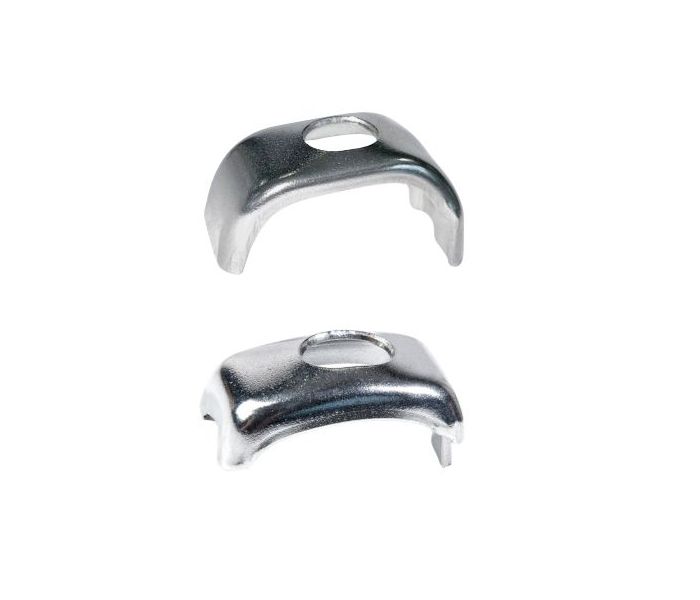

Small RSJ Sign Clamp
-
For fitting channelled signs to RSJs
-
Supplied with M8 square head set screw, washer and Nyloc nut
Large RSJ / Gantry Sign Clamp
-
For fitting channelled signs to RSJs with a deeper web
-
Supplied with M8 square head set screw, washer and Nyloc nut
specification
Product type: RSJ sign clamp
Application: Fixing channelled signs to steel beams / rolled steel joists
Fixings included: Yes
Bolt type: M8 square head set screw
Nut type: Nyloc nut
Washer included: Yes
Sold as: Each
Compatible with: Sign channel on rear of sign panel
