Self Adhesive Insulation Pins - Aluminium
Self Adhesive Insulation Pins - Aluminium
Self-adhesive insulation pins. Aluminium Pin, Galvanised Base. Boxes of 500 or 250 (see table in description).
Supplied with washers
Self Adhesive Insulation Hangers - Aluminium

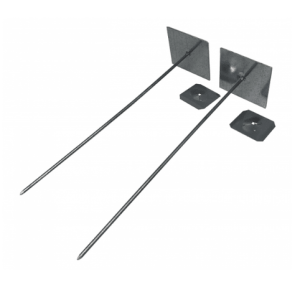

Aluminium self-adhesive insulation pins, often referred to as stick pins, are compact and lightweight fasteners designed for attaching insulation materials to metal surfaces. These pins feature an aluminium shaft and a self-adhesive base for easy application.
The self-adhesive base is usually used in situations where the pins are attaching to metal, for example, a smooth metal wall. If the pins are being attached to other surfaces such as plasterboard, brick or stone then a perforated base is usually used. You can find the pins with a perforated base here.
- Supplied with washers
Common Uses
- Ducts: Helping to prevent heat transfer by fastening insulation to metal ductwork.
- Pipes: Reducing heat loss and preventing condensation by insulating pipework.
- Fittings: Covering valves, flanges, and other irregular fittings with insulation.
- Machinery & Equipment: Minimizing noise, vibration, and heat transfer from industrial equipment.
Size |
Pin Material |
Base Material |
Box Size |
45mm | Aluminium | Galvanised steel | 500 |
62mm | Aluminium | Galvanised steel | 500 |
80mm | Aluminium | Galvanised steel | 500 |
90mm | Aluminium | Galvanised steel | 500 |
110mm | Aluminium | Galvanised steel | 500 |
125mm | Aluminium | Galvanised steel | 500 |
140mm | Aluminium | Galvanised steel | 250 |
165mm | Aluminium | Galvanised steel | 250 |
203mm | Aluminium | Galvanised steel | 250 |
