VHR Head Restraint (Box of 50)
VHR Head Restraint (Box of 50)
- Engineered to provide lateral stability at the head of internal leaf blockwork in cavity wall construction.
- Fabricated from grade 304 stainless steel
- Suitable for 100mm -140mm wide block configurations
- Compliant with relevant fire and durability standards.
-
Qty
Price (Excl.VAT)
Price (Incl.VAT) - 3+ £258.78 £215.65 save 5%
- 6+ £250.61 £208.84 save 8%
- 10+ £245.16 £204.30 save 10%

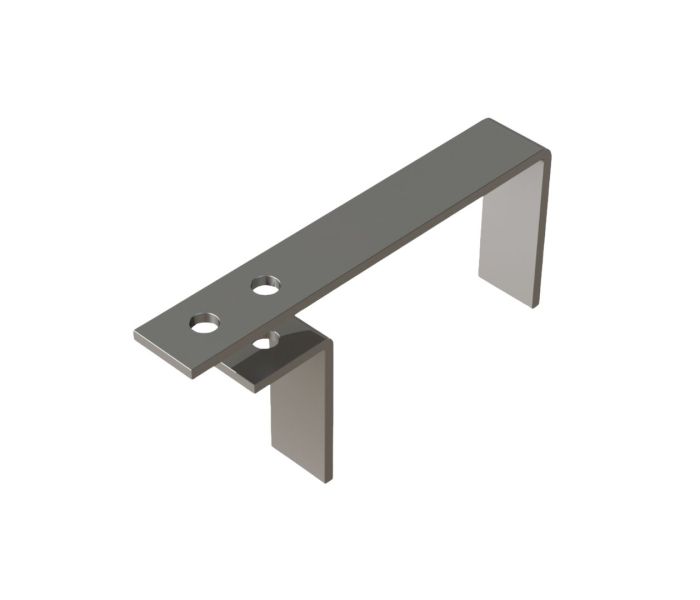

VHR Head Restraint | For 100-140mm Cavity Wall Blockwork| Box of 50
- The VHR Internal Head Restraint system is designed to provide restraint to the upper section of internal leaves in cavity wall constructions
- Prevents lateral displacement by securing the masonry to an overhead structural element.
- This restraint is formed from two interlocking stainless steel angles with pre-punched offset fixing points to accommodate multiple wall widths.
Technical Specification
- Material: Grade 304 austenitic stainless steel
- Design Configuration: Twin-angle assembly with offset dual-hole pattern
- Compatibility: Standard configuration suits 100mm and 140mm blockwork custom variants available for 215mm (Get in touch)
- Fixing Centres: Typically installed at 450mm or 900mm intervals, depending on calculated lateral load requirements
- Vertical Tolerance: Vertical movement is permitted by allowing clearance between the top course of masonry and the underside of the restraint angle
- Durability: Minimum 60-year design life; excellent corrosion resistance under standard internal environmental conditions
- Fire Classification: Non-combustible in accordance with national Building Regulations
- Specification Availability: Listed on NBS Source
Recommended Fixings (substrate dependent):
- M8 FBN II anchor – for concrete substrates
- M8 isolated setscrew – for universal beams/columns (UB/UC)
- M8 Molabolt – for rectangular/square hollow section steelwork (RHS/SHS)
Performance Data (AAC Block Substrate)
| Block Width | Mean Shear Load (Horizontal) | Mean Displacement at 1/3 Load |
| 100mm | 3380N | 1.49mm |
| 140mm | 3550N | 1.09mm |
Installation Procedure
- Position the longer angle at the fixing point and mark/drill as required.
- Construct the inner leaf blockwork to full height.
- Reposition the angle, align the shorter restraint angle, and secure both using a single M8 fixing bolt, torqued to the manufacturer's recommended setting.
Health & Safety Note
- Due to the nature of manufacture from sheared plate and strip, components may present sharp edges. Suitable PPE (e.g. gloves, eye protection) must be worn during handling and installation.
