Galvanised Bed Joint Reinforcement Ladder

• Galvanised bed joint reinforcement ladder is designed to strengthen masonry walls by reinforcing the mortar bed joints between brick or block courses.
• Supplied in 2.7 metre lengths and packs of 40
• Commonly used in internal masonry and low-risk exposure environments
• Brick reinforcement ladder helps reduce cracking caused by thermal movement and shrinkage while improving overall wall stability.
• This galvanised ladder reinforcement provides an efficient and cost-effective solution for structural use within walls and partitions.

What Is Bed Joint Reinforcement?

• Bed joint reinforcement, also known as brick reinforcement or masonry ladder reinforcement, is installed within the horizontal mortar joints of brickwork or blockwork.

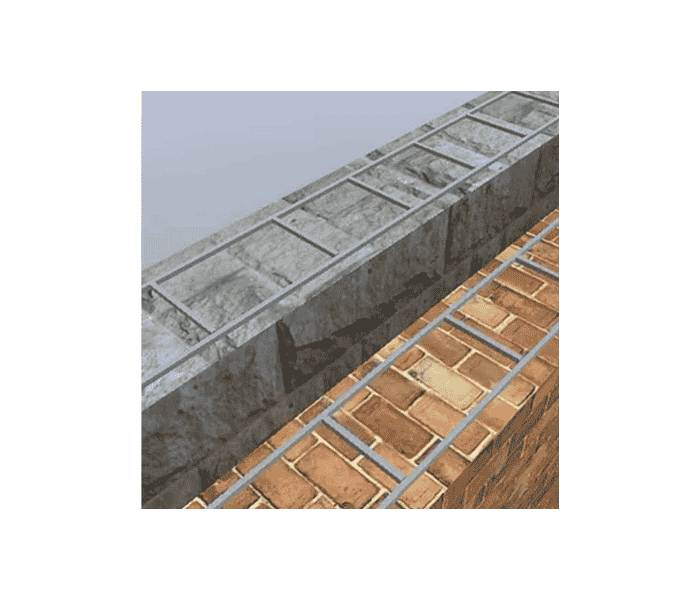

• The ladder format consists of parallel longitudinal wires connected by cross wires, forming a rigid reinforcement that sits neatly within the bed joint.
• Galvanised bed joint reinforcement is particularly suited to internal walls, where exposure to moisture and aggressive environments is limited.
• It is designed to provide general support, improve load distribution, and aid in controlling cracking within masonry structures.

Product Specifications

• Material: Galvanised steel

• Length: 2.7 metres

• Pack size: 40 lengths

• Format: Ladder reinforcement

• Intended use: Structural use within walls and partitions

• Durability coating reference: R13 (Galvanised Steel)

Compliance and Performance

This galvanised bed joint reinforcement ladder conforms to BS EN 845-3+A1 and carries UKCA marking, making it suitable for use in structural masonry applications within the UK.

Performance characteristics include:

• Characteristic yield strength of longitudinal wires: 500 N/mm²

• Minimum tensile stress: At least 15 percent greater than yield stress

• Bond strength: 4830 N

• Lap length: 225mm including at least one cross wire

Installation Guidance

• Galvanised bed joint reinforcement ladder should be installed directly into the mortar bed joint and fully embedded with mortar.
• Reinforcement should be laid continuously along the wall length, with laps of 225mm minimum, ensuring at least one cross wire is included within the overlap.
• Ensure the reinforcement width matches the wall thickness and allows for adequate mortar cover in line with masonry standards.
