Perforated Base Insulation Pins - Aluminium
Perforated Base Insulation Pins - Aluminium

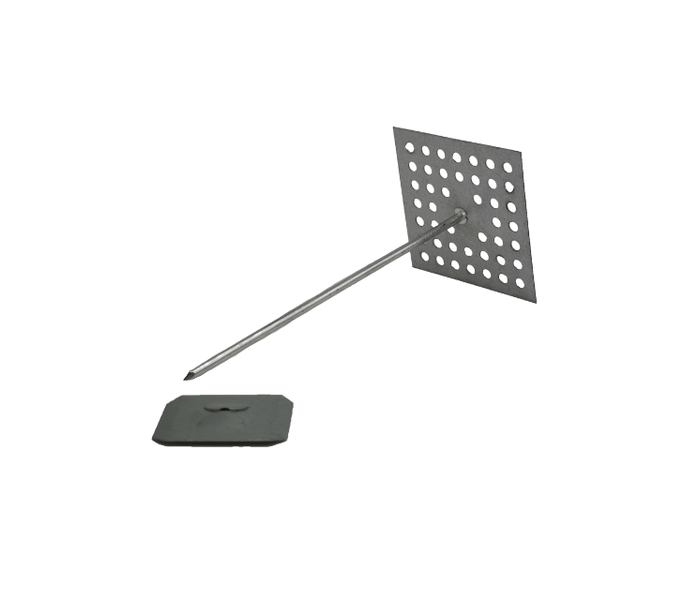

- Perforated base insulation pins, also known as insulation hangers.
- Designed for securing duct and cladding insulation.
- Featuring an aluminium pin with a galvanised steel perforated base.
- Supplied complete with self-locking retaining washers.
Perforated Base Insulation Hangers for HVAC & Duct Insulation
- Perforated base insulation pins are used to secure soft insulation materials to ductwork and sheet metal surfaces using insulation adhesive.
- Manufactured with a lightweight aluminium pin and galvanised steel perforated base, these insulation hangers are designed specifically for adhesive installation. The perforated plate allows adhesive to pass through the holes, creating a stronger mechanical bond once cured.
- These are not self-adhesive pins and require separate insulation adhesive for installation.
- All pins are supplied complete with self-locking retaining washers.
Typical Applications
-
HVAC duct insulation
-
Acoustic insulation systems
-
Thermal insulation on sheet metal ducting
-
Industrial cladding systems
Designed for use where adhesive fixing is preferred over self-adhesive pins.
Key Features
-
Aluminium pin for corrosion resistance
-
Galvanised steel perforated base for improved adhesive grip
-
Designed for use with insulation adhesive
-
Supplied with self-locking retaining washers
-
Bulk trade box quantities
-
Fast UK dispatch
Installation Guidance
Perforated base insulation pins must be installed using a suitable insulation adhesive.
Installation steps:
-
Ensure surface is clean, dry and free from grease
-
Apply approved insulation adhesive to the perforated base
-
Press firmly onto the duct or metal surface
-
Allow full curing time as per adhesive manufacturer guidelines
-
Install insulation and secure using supplied retaining washer
Pin length should exceed insulation thickness to allow compression and washer fitting.
| Pin Length | Box Quantity |
| 62mm | 500 |
| 90mm | 500 |
| 110mm | 500 |
| 140mm | 250 |
| 165mm | 250 |
| 203mm | 250 |
Materials
-
Pin: Aluminium
-
Base: Galvanised Steel
Also available in stainless steel 304 and 316 in both perforated and self-adhesive options.
Frequently Asked Questions
Are these self-adhesive insulation pins?
No. These are perforated base insulation pins and require separate insulation adhesive for installation.
What adhesive should be used?
A suitable insulation fixing adhesive designed for HVAC duct insulation should be used. Always follow the adhesive manufacturer’s curing instructions.
Are washers included?
Yes. All perforated base insulation pins are supplied with self-locking retaining washers.
How do I choose the correct pin length?
Select a pin length slightly longer than your insulation thickness to allow space for compression and securing with the retaining washer.
